Gateway X-Monitor advanced modem 3G/4G/NB-IoT/LTE-M + Wi-Fi™

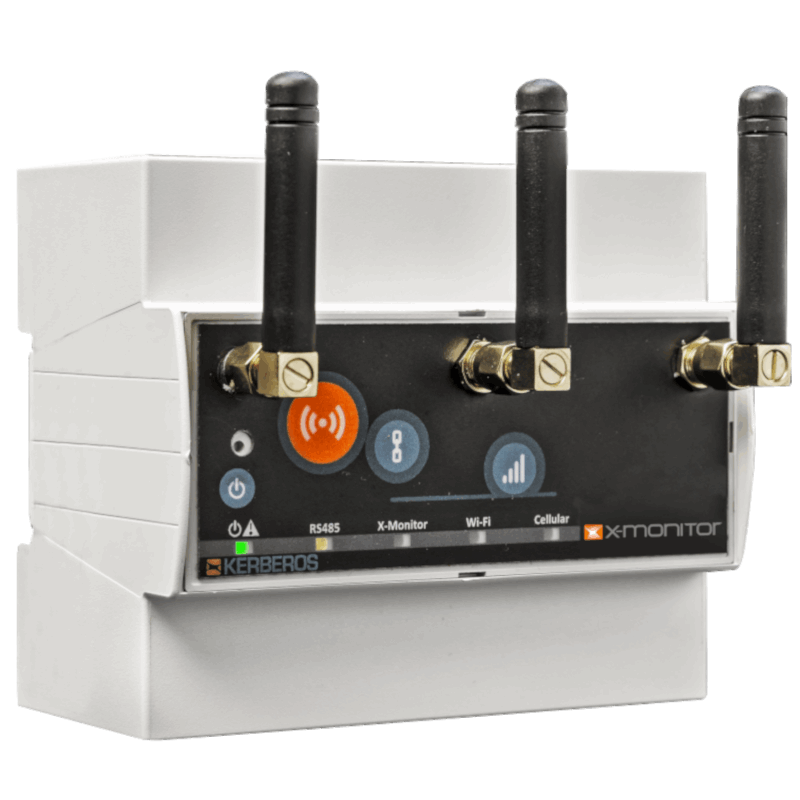

The KET-GZE-310 Gateway, at the heart of the X-Monitor network, offers advanced functions and a large memory capacity.

The (optional) integrated 3G/4G/NB-IoT/LTE-M modems and Wi-Fi™ support increase the possibilities of realizing an installation in the absence of LAN connectivity.

The Linux operating system allows the use of standard libraries to support security and data transmission protocols.

Through the supplied X-Manager software and the integrated web interfaces, it is very simple to install even complex sensor networks by setting the necessary parameters and verifying the acquired measurements in real time.

In addition to the possibility of sending data to external platforms (such as X-Platform), an internal SD memory is available which stores data for periods longer than three months.

The RS485 port works in both RTU Master and Slave mode. Thus it is possible to connect devices directly to the gateway or to access the registers of the connected devices with an external RTU master.

KET-GZE-310 also incorporates a ModBUS TCP/IP server which allows connection of the X-Monitor network to SCADA systems, programmable logics (PLC) and man-machine interfaces (HMI systems and displays).

Integration with proprietary data collection systems is made possible by the support for sending data to REST / JSON web services and IEC 60870-5-104 protocol.

960.00 € 960.0 EUR 960.00 € VAT Excluded

960.00 € VAT Excluded

Not Available For Sale
